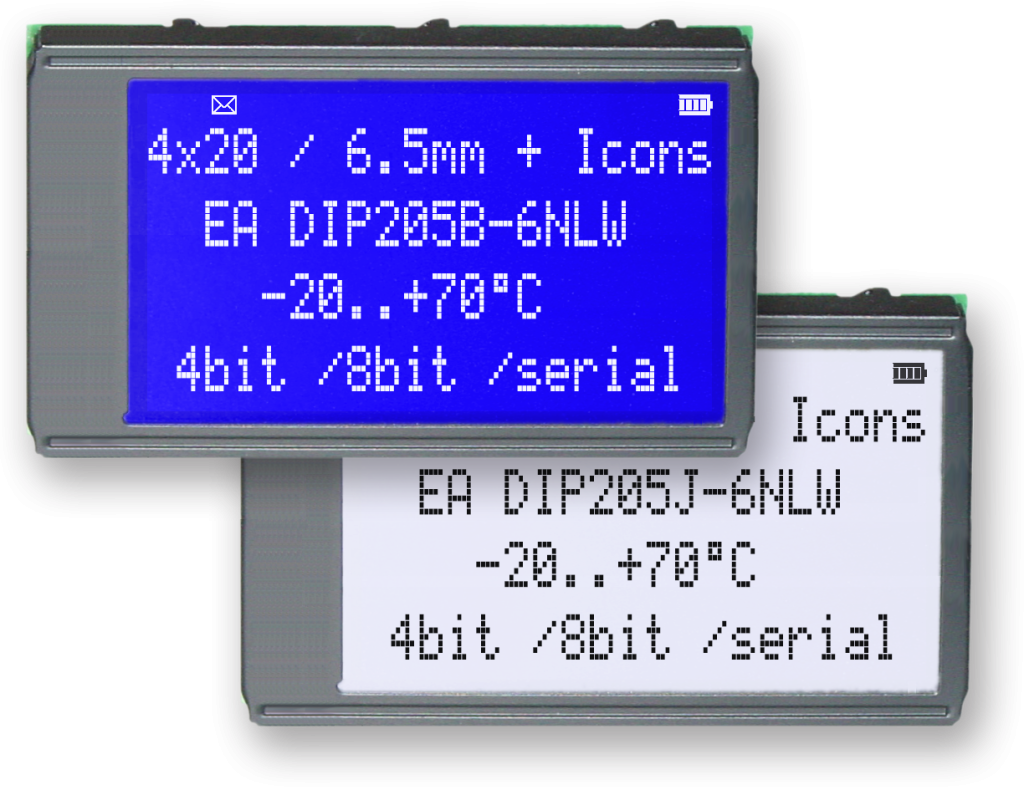

4x20 DIP Character Display EA DIP205B-6NLW
£41.49
SKU:
EA DIP205B-6NLW
18 left in UK stock (more available from EU stock - delivery 1wk) Enquire or Buy now.
New EA DIP205B-6NLW High contrast, supertwist 4 lines by 20 character display blue-white with 16 additional icons (mail, arrow, battery, telephone...) 6.45 mm character height.
Compact high-grade display with extended temperature range.Display pins can be solder direct into the PCB or plug into a socket. High-end backlight.
Controller RW1073 similar to HD44780 and SSD1803. Interface 4-/8-bit parallel and SPI.
This display is a direct replacement for EA DIP203B-6NLW
Click here to download the datasheets for this product.
| Total Width | 75 |
| Total Height | 45.8 |
| View area width | 61 |
| View area height | 38 |
| Thickness | 10.8 |
| Status | In production |
| Interface |
SPI 4/8 Bit |
| Backlight Colour | white |
| Voltage Supply | 3.3V..5.0V |
| Char X Line | 20 |
| Char Height | 6.45 |
| Background Colour | blue |
| Current Backlight Off (mA) | 2 |
| Current Backlight On (mA) | 90 |
| View Angle | 6:00 / bottom view |
| Display Technology | STN blue |
| Pixel Size Y | 0.78 |
| Pixel Size X | 0.45 |
| Operating Temperature | -20 ... +70 °C |
| Controller | RW1073 |
| Active | 1 |
