2x20 OLED Character Display with 4/8bit and SPI EA W202-XDLG
£56.72
SKU:
EA W202-XDLG
Out of stock

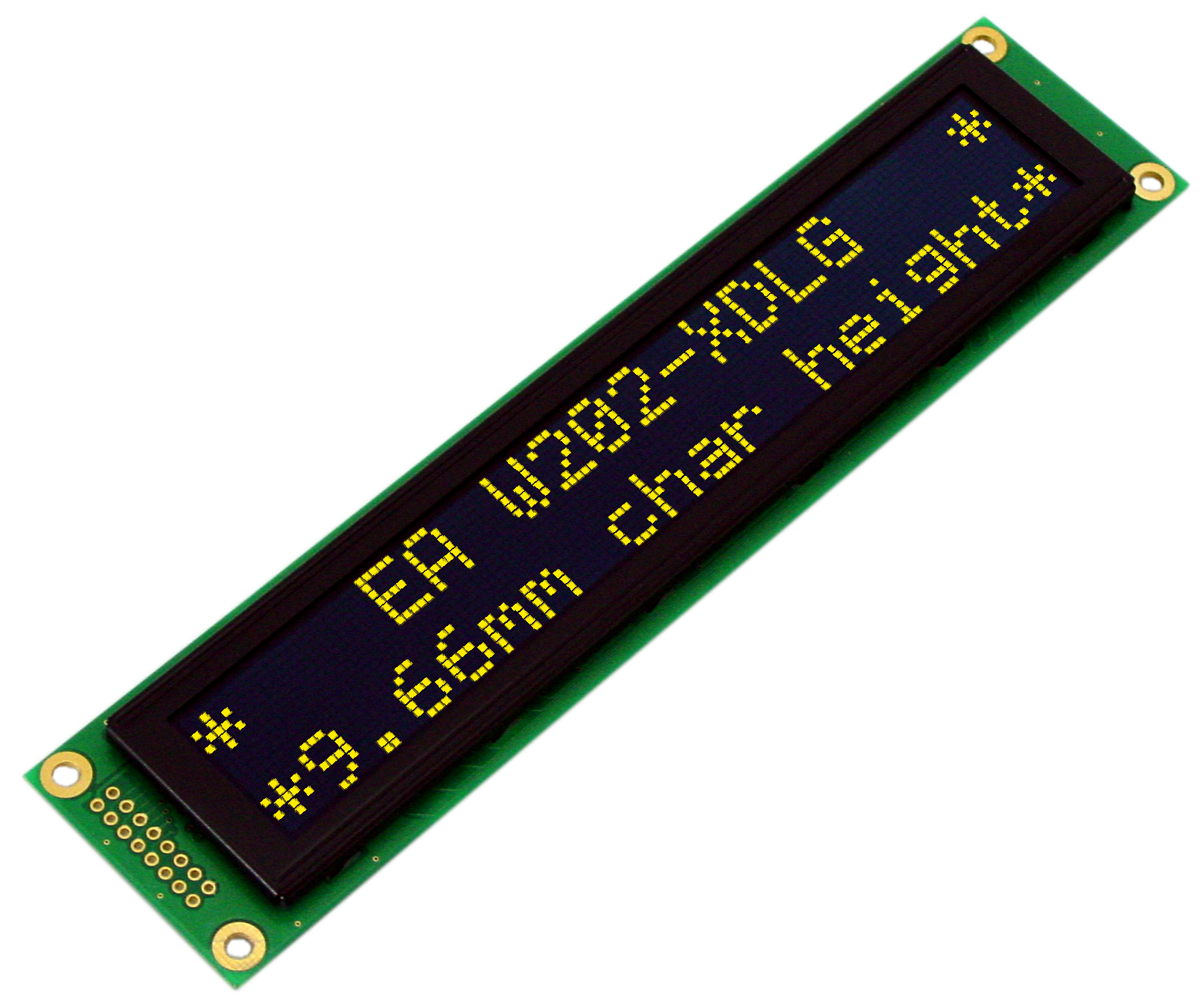

EA W202-XDLG COB OLED character display, 2 lines of 20 characters with Yellow/Green dots with large 9.6mm character height.
Compatible HD44780 controller with 4/8 bit interface and SPI interface.
Only single 3.3V or 5.0V logic supply voltage required. Selectable English, Japanese, European or Cyrillic characters sets.
- Only available while in stock, then discontinued -
Click here to download the datasheet for this product.
| Total Width | 180 |
| Total Height | 40 |
| Thickness | 9.3 |
| Status | In Production |
| Interface |
SPI 4/8 Bit |
| Char X Line | 20 |
| Char Height | 9.66 |
| Display Technology | OLED |
| Pixel Size Y | 1.12 |
| Pixel Size X | 1.12 |
| Operating Temperature | -40 ... +80 °C |
| Controller | HD44780/compatible |
| Fonts | 4 |
| Diagonal Size | 0 |
| Touchscreen | No |
| Lines | 2 |
