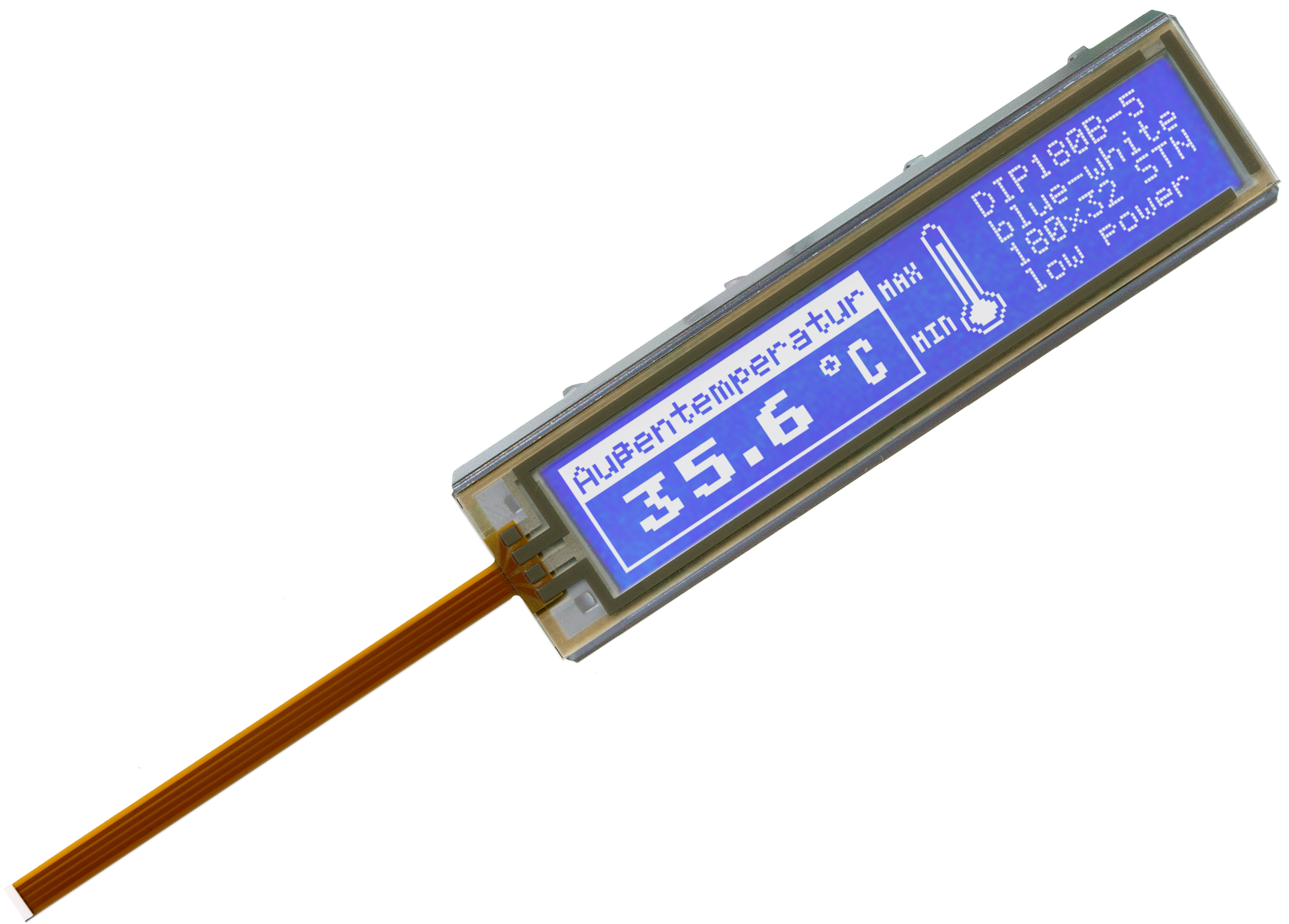

32x180 DIP Graphic Display EA DIP180B-5NLWT
£68.73
SKU:
EA DIP180B-5NLWT
This item can be backordered, available from EU stock (delivery ~1wk) Enquire or Buy now.
Graphic display blue-white with 180x32 dots. Compact high-grade display with extended temperature range and resistive analogue touchpanel.Display pins can be solder direct into the PCB or plug into a socket. Controller compatible to AX6120. 8-bit interface
Click | Interface | 4/8 Bit |
| Backlight Colour | white |
| Voltage Supply | 5.0V |
| Background Colour | blue |
| Current Backlight Off (mA) | 1 |
| Current Backlight On (mA) | 45 |
| View Angle | 6:00 / bottom view |
| Display Technology | STN blue |
| Pixel Size Y | 0.48 |
| Pixel Size X | 0.42 |
| Operating Temperature | -20 ... +70 °C |
| Controller | SED1520/compatible |
| Active | 1 |
| Fonts | 0 |
| Diagonal Size | 3.5 |
| Touchscreen | Yes |
| Touch Type | analog resisitive |
| Analogue Outputs | 0 |
| Pixel X | 32 |
| Pixel Y | 180 |
