This page list 17 development tools for LCD, OLED, TFT and Embedded displays allowing you to quickly learn, evaluate and develop display applications without the need to manufacture a custom PCB first. We provide developers with evaluation boards, display shields and simulators for quick and easy testing.
Our displays offer reliable long-term availability, ensuring seamless product integration. With our displays, you can confidently design for the future. Most of our display are available from stock with MOQ of 1 or on a very short leadtime. Our long term product availability makes this a reliable choice for your new designs.
MMS Electronics offers dedicated UK based technical support. Contact us now and share your design project with us today.
LCD Display development tools
Evaluationboard for DOG-COG displays with simulator
Download the free of charge DOG Chip-On-Glass display simulator and experiment with all combinations of the display technology and LED backlight colours. Show the DOG displays on your desktop without any programming or order the EA 9780-4USB test board to power your display. Fit the display into the EA 9780-4USB board, connect power to the USB. Type text or drag and drop a monochrome picture into the DOG-simulator software and the text or picture will be immediately displayed on the display. Demonstrate the display to your project team without writing any code. The EA 9780-4USB powers all available alphanumeric and graphic DOG displays. See here for more details of the DOG displays.
- Free Windows™ DOG simulator software
- Drag and drop text and pictures
Link to EA 9780-4USB product and datasheet
Arduino UNO shield for use with DOG-COG Displays
Connect the EA DOG displays with a display shield to an Arduino UNO. We have unpopulated Arduino shields with support documentation, circuit diagrams, EAGLE PCB layouts, component placements, initialisation sequences and example programs for operating the DOG displays with an Arduino Uno. 3 different shields are available
| Partnumber | Supported display |
|---|---|
| EA PCBARDDOG7036 | For EA DOGM081, DOGM162, DOGM163 |
| EA PCBARDDOG7565 | For EA DOGM132, DOGM128-6, DOGL128-6 |
| EA PCBARDDOG1701 | For EA DOGS102-6 |
Intelligent UART eDIP display Evaluation Kits
The EA EVAL-eDIP development kits designed by DISPLAY VISIONS contains everything required to start development with the eDIP UART intelligent displays. The box includes an eDIP display of your choice with touch-screen, program board with USB port, USB cable and the LCD Tools software. Can be used with EA eDIP128B-6LWT, EA eDIP128J-6LWT, EA eDIP128J-6LWT, EA eDIP160B-7LWT, EA eDIP160J-7LWT, EA eDIP240B-7LWT, EA eDIP240J-7LWT, EA eDIP320B-8LWT.
The EVAL board support USB, serial, SPI, I2C, RS232 and RS485 interface.
OLED Display development tools
Evaluation board for OLED displays with simulator
Download the free of charge OLED display simulator and show the OLED displays on your desktop without any programming. Order the EA 9781-2USB test board, connect power to the USB port and immediately show information on the display. Simply type text or drag and drop a monochrome picture into the software and immediately the text or picture is displayed on the OLED display. Demonstrate the display to the team without having to write any code. The EA 9781-2USB can demo 10+ different size OLED displays including the mini square and round graphic OLED displays. See HERE for more details on our OLED displays.
- Free Windows™ OLED simulator software
- Drag and drop text and pictures
link to EA 9781-2USB product and datasheet
TFT Display development tools
EA 9782-1USB TFT Demo board and simulator software
MMS Electronics Ltd provides developers with a demo board to evaluation the small IPS displays from the DISPLAY VISION's product line. The EA 9782-1USB allows for quick and easy testing and adaptation of small TFT panels with size 0.9", 1.5", 2.0", 2.8" and 3.5" including those with PCAP touch function (-AITC).
No specific knowledge of the hardware or software is required. Simply connect the USB cable to the EA 9782-USB evaluation board and the connected IPS display becomes active. Additionally when the EA 9782-1USB evaluation board is connected to a Windows PC and the STARTTFT.exe program is executed (which can be downloaded for free), it opens up more options to display your own images, write text, change orientation and control the brightness. The evaluation board is available on it's own or can be ordered as a bundle including the IPS colour displays.
- Free Windows™ TFT simulator software
- Drag and drop text and pictures
link to EA 9782-1USB product and datasheet
EA 9980-TFT Interface board for TFT displays
EA 9980-TFT interface board is designed to provide an easy and fast way to connect TFT displays fitted with a 50 or 39 pin FPC ribbon cable. The EA 9980-TFT has both a 1.0mm pitch 50 pin ZIF connector and 0.3 mm pitch 39 pin ZIF connector fitted. The ZIF connector contacts are brought out to a 2.54 mm pitch to allow easy connection to breadboards or boards from the Arduino or Rapberry PI world. The EA 9980-TFT board also includes TPS61165, a high brightness White LED driver with brightness control. The LED current is set by 6 solder bridges connected to the onboard resistor. The TPS61165 allows to dimm the LED brightness by PWM control.
Additionally the EA 9980-TFT interface PCB has a 6 pin and 10 pin ZIF connector fitted to connect a touch panel.
- Connecting TFT displays to microcontrollers or single-board computers.
- Developing embedded systems with TFT displays.
- Avoid complex soldering of the display connector.
If you are looking for an easy and versatile way to connect TFT displays, the EA 9980-TFT interface board is a great option. It is compatible with a wide range of displays and avoids complex soldering, ideal to start a variety of applications.
For further details see link to EA 9980-TFT
EA RaPICO009 display shield for Raspberry Pi Pico (RP2040)
Display shield EA RaPicoTFT009-TC for use with the Raspberry Pi Pico (RP2040) has display EA TFT009-81AITC fitted to the PCB shield. The display shield is available with and without the PCAP touch option. EA TFT009-81AITC display resolution is 80x160 pixels. The In-Plane-Switching (IPS) technology widens the viewing angle and the All Angle Colour Stability (AACS) provides unchanged colour and contrasts even with changing viewing angles. The display can be used without loss in quality in portrait (80x160) or landscape mode (160x80). This EA TFT009-81AITC display has long-term availability and is ideal for use in new designs. Integrated with a bright white LED backlight producing 500 cd/m2.
The EA RaPico009 is supplied with the C library software, numerous functions and detailed documentation to display graphics and text. Designed as a “Shield”, the PCB plugs directly onto the Raspberry Pi Pico.
For further details see link to EA RaPICO009 (no touch) and EA RaPICO009-TC (with PCAP)
EA RAZEROTFT HAT for Raspberry Pi Zero

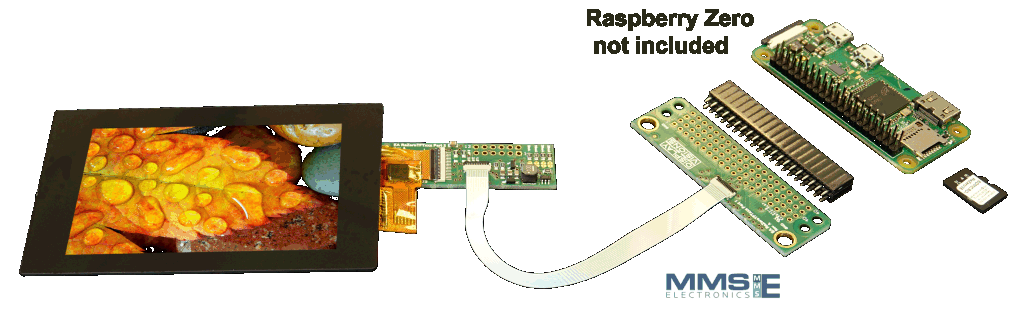

A new Raspberry Pi Zero adapter board EA RAZEROTFT for seamless integratioon of small size displays, 1.5 to 3.5 inch with the Raspberry Pi Zero. This compact, single-board computer benefits significantly from a small TFT display, enhancing its usability. The Raspberry Pi Zero has an HDMI interface that can be used for larger screens but with this adapter also smaller IPS TFT displays such as TFT015, TFT020, TFT028 and TFT035 can connect. These displays are also available with a PCAP touch-screen. The adapter board plugs directly into the Raspberry Pi Zero GPIO connector, powering the colour display and optional touch-panel.
Free Raspberry Pi code is supplied, we provide overlay files and testcode to write content to display as well as reading the touch screen. Additionally, SD-Card images with the overlay files are provided. A flexible FPC cable, available in various lengths, ensures a reliable connection. The low power consumption of these TFT displays makes them ideal for battery-powered or energy-efficient IoT applications.
For details see link to EA RAZEROTFT (PCB without the display) documentation and web shop
For details see link to EA RAZEROTFT015, EA RAZEROTFT020TC, EA RAZEROTFT028TC, EA RAZEROTFT035TC (PCB, flex, SD card and IPS Display) documentation and web shop
Intelligent UART eDIPTFT display Evaluation Kits
The EA EVAL-eDIP development kits designed by DISPLAY VISIONS and contains everything required to start development with the eDIPTFT UART intelligent displays. The box includes an eDIP display of your choice with touch-screen, program board with USB port, USB cable and the LCD Tools software. Can be used with EA eDIPTFT32-A, EA eDIPTFT32-ATP, EA eDIPTFT43-A, EA eDIPTFT43-ATP, EA eDIPTFT43-ATC, EA eDIPTFT57-B, EA eDIPTFT57-BTP, EA eDIPTFT70-ATP, EA eDIPTFT70-ATC.
The EVAL board support USB, serial, SPI, I2C, RS232 and RS485 interface.
Evaluation Boards for EA uniTFTs Embedded displays
Get started effortlessly with the EA uniTFTs embedded displays. We have put together 5 different demoboards that include the EA uniTFT028-ATC display. Simply supply power to the USB port and the 2.8" display works straight out of the box. As the ZIF connector for other size uniTFTs displays is the same, other uniTFTs display sizes can be used with these DEMOPACKs. The EA DEMOPACK contains everything required to start the development.
link to EA DEMOPACK-CLIMA with CO2, temperature and humidity sensor, USB supply
link to EA DEMOPACK-CONNI with USB, RS232, RS485, SPI, I2C level shifter, 5-30V supply
link to EA DEMOPACK-RGBANA with RGB LED via SPI and Analogue input, USB supply
link to EA DEMOPACK-RELAY with 4 inputs up to 30V, current sensor, Relay, 5-30V supply
link to EA DEMOPACK-WiFiBT with USB, WiFi and Bluetooth (ESP32 processor) + USB
Evaluation Boards for the EA uniTFT 5.0", 7.0" and 10.1" Embedded displays
The QUICK-uniTFT box contains everything to get started with the larger EA uniTFT smart displays. The box includes the EA uniTFT display of your choice with PCAP touch, breakout board for pin 1-26 with speaker and PSU connector, USB cable and the uniTFTDesigner software.
link to EA QUICK-uniTFT050 product and datasheet
link to EA QUICK-uniTFT070 product and datasheet
link to EA QUICK-uniTFT1
