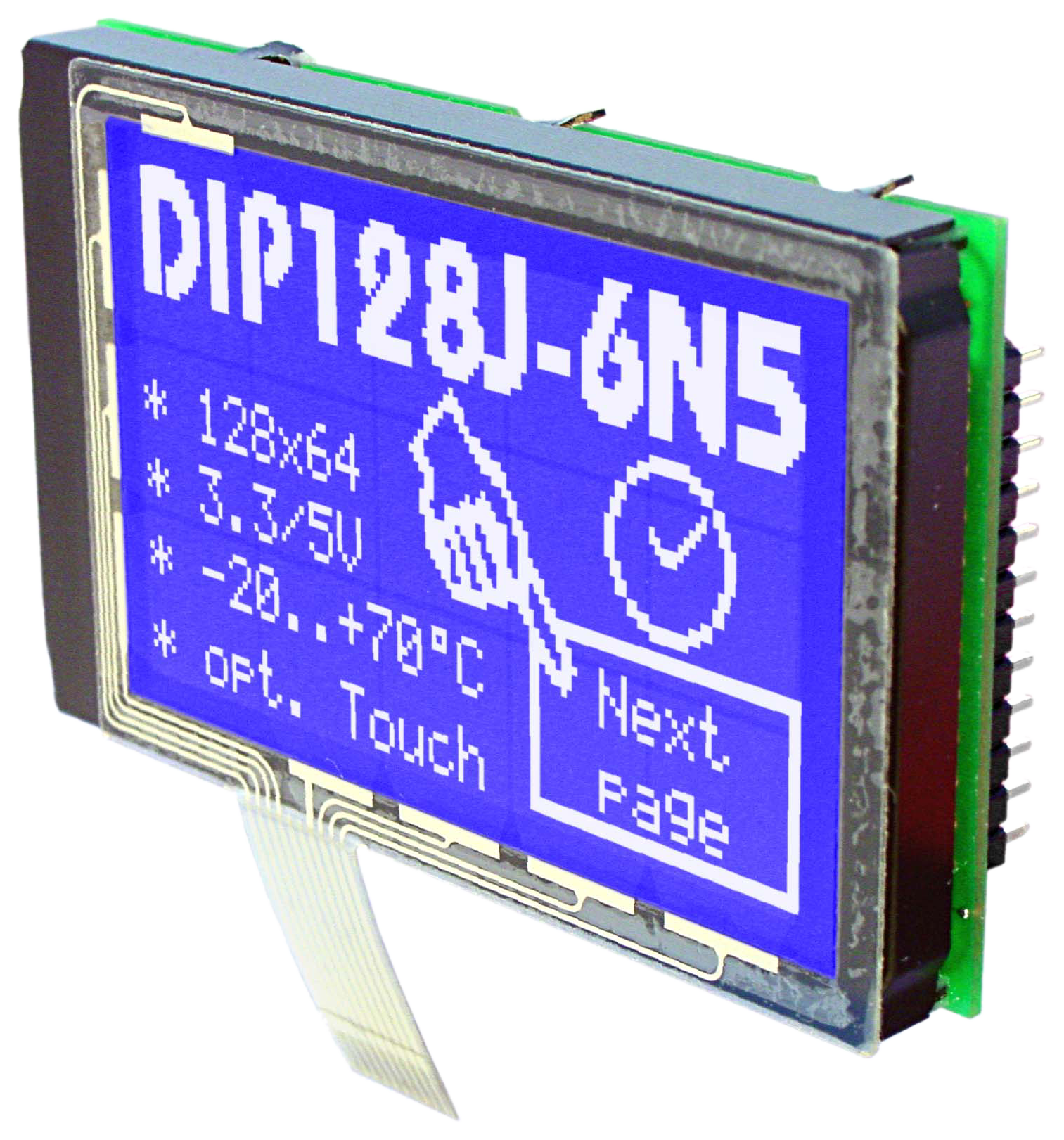

64x128 DIP Graphic Display EA DIP128-6N5LWTP
£83.62
SKU:
EA DIP128-6N5LWTP
5 left in UK stock (more available from EU stock - delivery 1wk) Enquire or Buy now.
EA DIP128-6N5LWTP Blue-white graphic display with 128x64 dots. Compact high-grade display with extended temperature range.
Fitted with resistive matrix touch 5 by 3 areas.
Display can be solder direct into the PCB or plug into a 2.54mm pitch socket.
White LED backlight. Including controller PT6608 compatible to HD61202. 8-bit interface
This display is also available without the touch-screen EA DIP128-6N5LW
This display is also available in White with Black characters EA DIP128J-6N5LW and EA DIP128J-6N5LWTP
Click | Interface | 4/8 Bit |
| Backlight Colour | white |
| Voltage Supply | 5.0V |
| Background Colour | blue |
| Current Backlight Off (mA) | 5 |
| Current Backlight On (mA) | 45 |
| View Angle | 6:00 / bottom view |
| Display Technology | STN blue |
| Pixel Size Y | 0.5 |
| Pixel Size X | 0.42 |
| Operating Temperature | -20 ... +70 °C |
| Controller | PT6607/08 |
| Active | 1 |
| Fonts | 0 |
| Diagonal Size | 2.8 |
| Touchscreen | Yes |
| Touch Type | matrix resistive |
| Analogue Outputs | 0 |
| Pixel X | 64 |
| Pixel Y | 128 |
