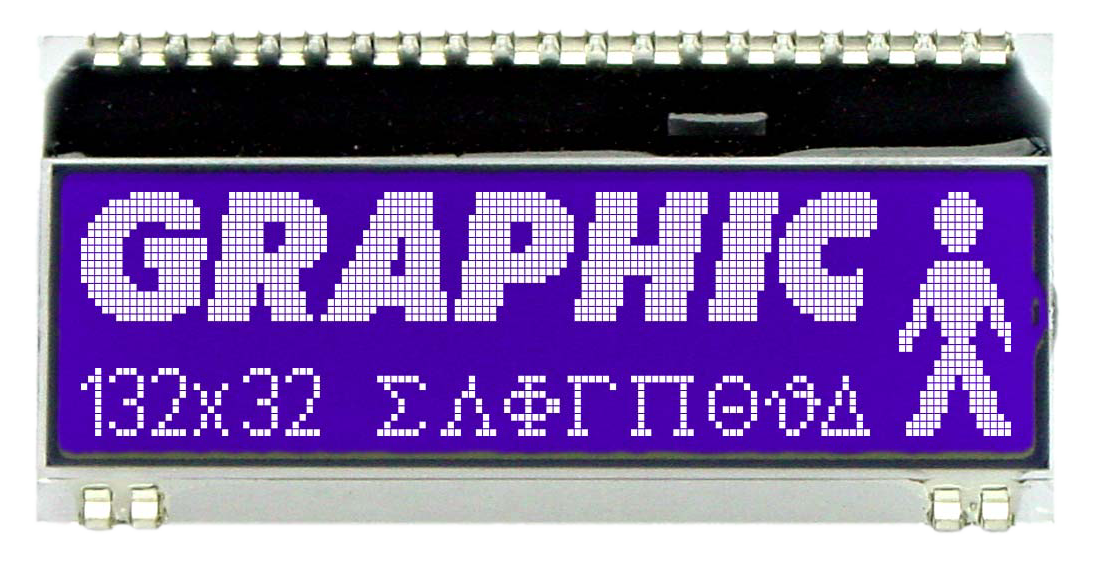

132x32 DOG Graphic Display EA DOGM132B-5
£12.86
SKU:
EA DOGM132B-5
In Stock
EA DOGM132B-5 DOG series graphic display with 132x32 dots. Extremely flat COG display in STN blue. 3.3 V single supply. Pins for direct mounting (2.54 mm pitch). Controller ST7565, SPI interface. Also available in various colours and designs. Backlight needs to be ordered separately. We recommend white backlight for this module.
Click | Total Width | 55 |
| Total Height | 31 |
| View area width | 51 |
| View area height | 15 |
| Thickness | 2 |
| Status | In Production |
| Interface | SPI |
| Backlight Colour | not defined |
| Background Colour | blue |
| Current Backlight Off (mA) | 0.14 |
| View Angle | 6:00 / bottom view |
| Display Technology | STN blue |
| Pixel Size Y | 0.4 |
| Pixel Size X | 0.35 |
| Operating Temperature | -20 ... +70 °C |
| Controller | ST7565 |
| Active | 1 |
| Fonts | 0 |
| Diagonal Size | 2.1 |
| Touch Type | available |
| Pixel X | 32 |
| Pixel Y | 132 |
