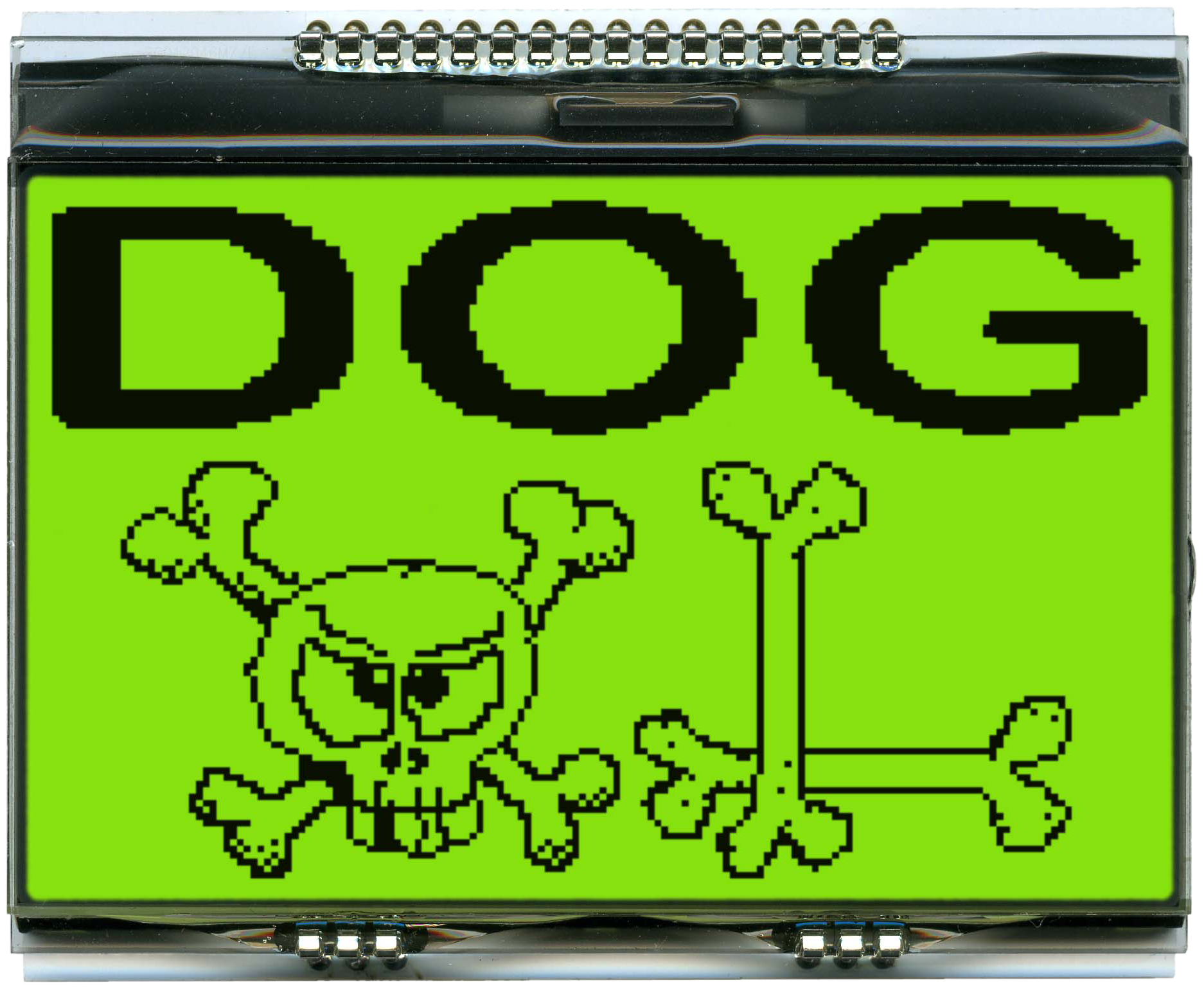

160x104 DOG Graphic Display EA DOGXL160L-7
£19.26
SKU:
EA DOGXL160L-7
In Stock
EA DOGXL160L-7 DOG series graphic display with 160x104 dots. Extremely flat COG display in STN yellow/green and SPI interface. 3.3 V single supply. Pins for direct mounting (2.54 mm pitch).Controller UC1610 SPI and I²C interface, SPI interface. Also available in various colours and designs. Reflective version, no backlight can be used with the EA DOGXL160L-7. If a backlight is required use EA DOGXL160W-7, EA DOG160B-7 or EA DOGXL160S-7.
Download the free of charge DOG-Simulator and experiment with all combinations of display technology and LED backlight colours. Show the DOG displays on your desktop without any programming or order the EA 9780-4USB test board to power your display.
Click HERE for more details on the DOG-simulator.
Click | Total Width | 78 |
| Total Height | 64 |
| View area width | 72 |
| View area height | 45.6 |
| Thickness | 2.8 |
| Status | In Production |
| Interface |
SPI I2C |
| Backlight Colour | not available |
| Background Colour | yellow/green |
| Current Backlight Off (mA) | 0.7 |
| View Angle | 6:00 / bottom view |
| Display Technology | STN Y/G |
| Pixel Size Y | 0.397 |
| Pixel Size X | 0.418 |
| Operating Temperature | -20 ... +70 °C |
| Controller | UC1610 |
| Active | 1 |
| Fonts | 0 |
| Diagonal Size | 3.3 |
| Touch Type | available |
| Pixel X | 104 |
| Pixel Y | 160 |
