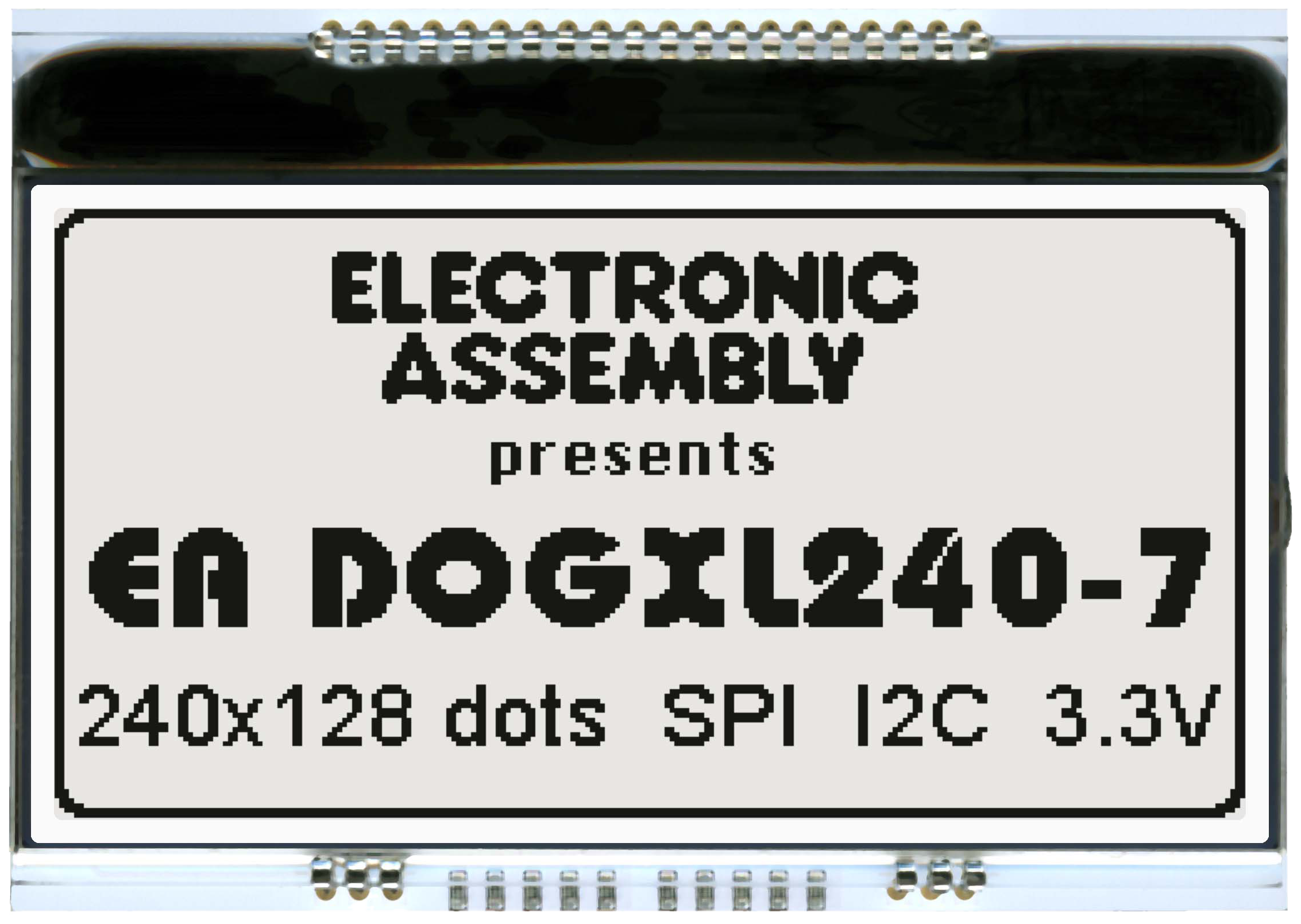

240x128 DOG Graphic Display EA DOGXL240N-7
£30.23
SKU:
EA DOGXL240N-7
8 left in UK stock (more available from EU stock - delivery 1wk) Enquire or Buy now.
EA DOGXL240N-7 DOG series graphic display with 240x128 dots. Extremely flat COG display in STN yellow/green 3.3 V single supply. Pins for direct mounting (2.54 mm pitch). Controller UC1611s with SPI and I²C interface. Also available in various colours and designs. No Backlight is used with the EA DOGXL240N-7. For the EA DOGXL240W-7, EA DOGXL240B-7 and EA DOGXL240S-7 backlight needs to be ordered separately.
Download the free of charge DOG-Simulator and experiment with all combinations of display technology and LED backlight colours. Show the DOG displays on your desktop without any programming or order the EA 9780-4USB test board to power your display.
Click HERE for more details on the DOG-simulator.
Click | Total Width | 94 |
| Total Height | 67 |
| View area width | 90 |
| View area height | 46.7 |
| Thickness | 2.8 |
| Status | In Production |
| Interface |
SPI I2C |
| Backlight Colour | not available |
| Background Colour | white |
| Current Backlight Off (mA) | 0.9 |
| View Angle | 6:00 / bottom view |
| Display Technology | FSTN |
| Pixel Size Y | 0.32 |
| Pixel Size X | 0.335 |
| Operating Temperature | -20 ... +70 °C |
| Controller | UC1611s |
| Active | 1 |
| Fonts | 0 |
| Diagonal Size | 3.9 |
| Touch Type | available |
| Pixel X | 128 |
| Pixel Y | 240 |
