5.7" eDIP Intelligent Graphic Display + Touch EA EDIP320J-8LWTP

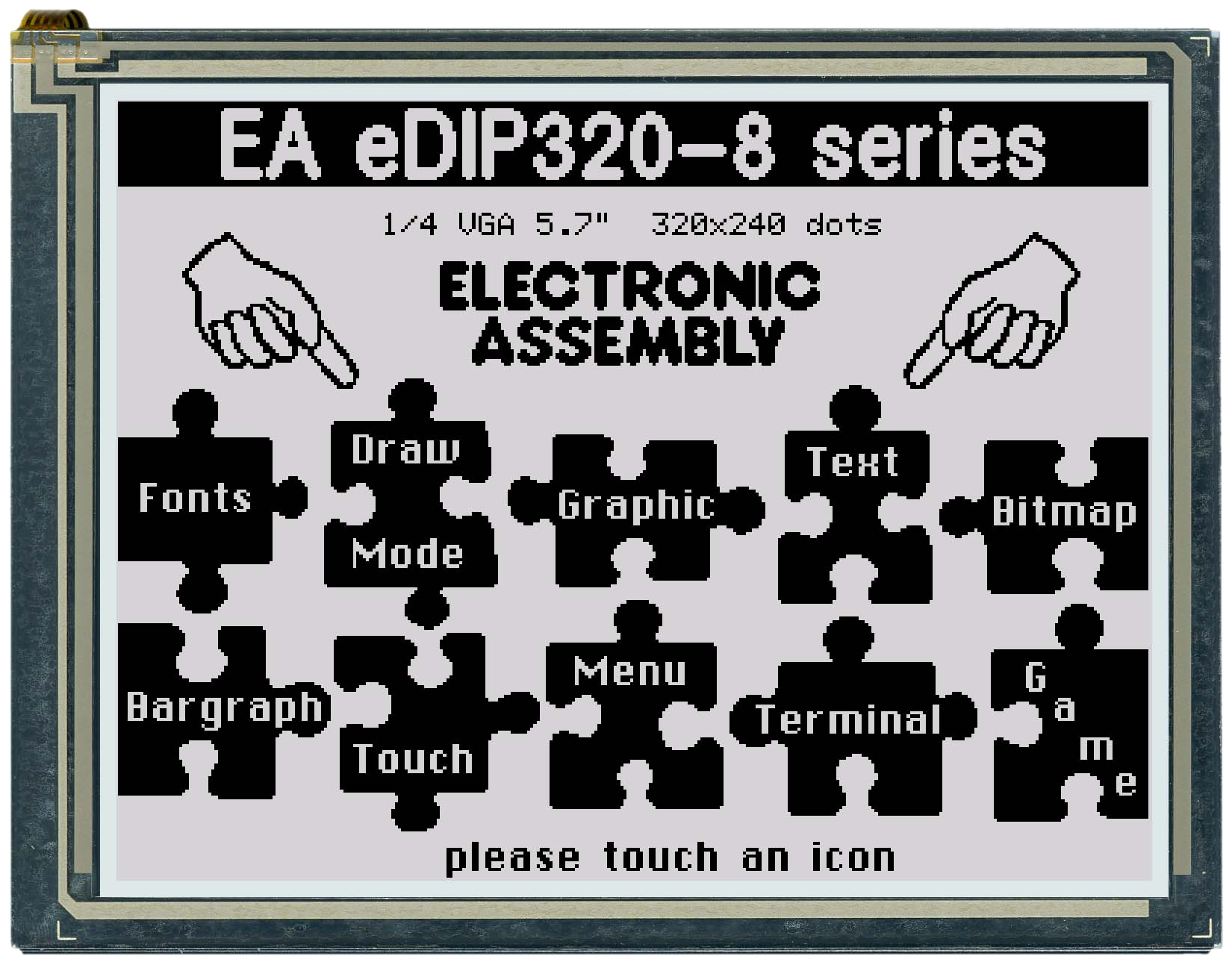

EA eDIP320J-8LWTP Intelligent graphic display, FSTN Black characters on a White background. White LED backlight, 320x240 resolution (1/4-VGA).
Display can be used in portrait or landscapape mode.
3 Interfaces serial RS-232, SPI and I²C bus. Display has robust pins (1/10" pitch) that can be soldered directly into the PCB or plugged into a standard socket.
This graphic display is very easy to use with the built-in fonts, many graphic functions. A version without touch-screen is also available, see EA eDIP320J-8LW.
Pictures, text and macro programs can be stored in the onboard EEPROM.
Mounting is done via the surdy pin header. Clamps are also provided to screw the display securely into the PCB or Bezel.
As an accessory a stylish black anodized aluminium panel mounting bezel is available EA 0FP321-8SW.
Click | Total Width | 137.8 |
| Total Height | 105.3 |
| View area width | 121 |
| View area height | 92.6 |
| Status | In production |
| Interface |
SPI I2C |
| Backlight Colour | white |
| Voltage Supply | 5.0V |
| Background Colour | white |
| Current Backlight Off (mA) | 50 |
| Current Backlight On (mA) | 230 |
| View Angle | 6:00 / bottom view |
| Display Technology | FSTN |
| Pixel Size Y | 0.34 |
| Pixel Size X | 0.34 |
| Operating Temperature | -20 ... +70 °C |
| Controller | EA |
| Active | 1 |
| Fonts | 8 |
| Diagonal Size | 5.7 |
| Touchscreen | Yes |
| Touch Type | analog resisitive |
| Pixel X | 240 |
| Pixel Y | 320 |
| Analogue Inputs | 0 |
| Inputs/Outputs | 8 |
