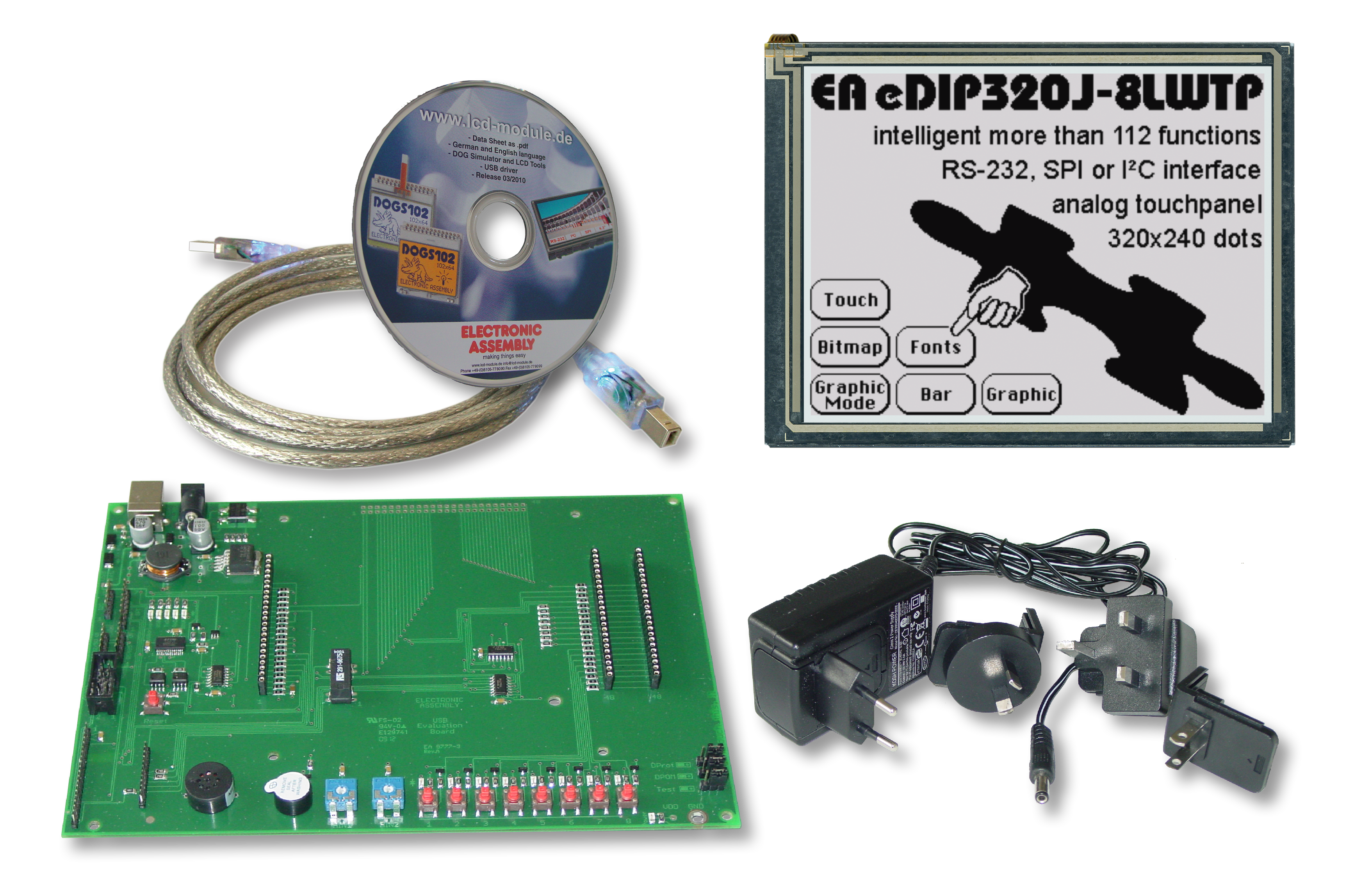

Evaluation KIT EA EVALEDIP320J with EA eDIP320J-8LWTP
£294.93
SKU:
EA EVALEDIP320J
Out of stock
EVAL-Kit incl. display EA eDIP320J-8LWTP with 320x240 pixel. In black&white with integrated touchpanel. Easy connection to PC via USB interface. Incl. software for Windows. Display plugged into socket with pitch 2.54mm. Display interface is RS-232 (CMOS), SPI or I²C bus. Incl. adaptor boards for RS-485 and RS-232. Character set and graphic functions are built-in (display). With FLASH PROM for individual pictures, additional character set, text and whole screens. Macro examples are included.
Click | Total Width | 210 |
| Total Height | 154 |
| View area width | 121 |
| View area height | 92.6 |
| Status | In production |
| Interface |
SPI I2C |
| Backlight Colour | white |
| Voltage Supply | 5.0V |
| Background Colour | white |
| Current Backlight Off (mA) | 50 |
| Current Backlight On (mA) | 230 |
| View Angle | 6:00 / bottom view |
| Display Technology | FSTN |
| Pixel Size Y | 0.34 |
| Pixel Size X | 0.34 |
| Operating Temperature | -20 ... +70 °C |
| Controller | EA |
| Active | 1 |
| Fonts | 8 |
| Diagonal Size | 5.7 |
| Touchscreen | Yes |
| Touch Type | analog resisitive |
| Pixel X | 240 |
| Pixel Y | 320 |
| Analogue Inputs | 0 |
| Inputs/Outputs | 8 |
