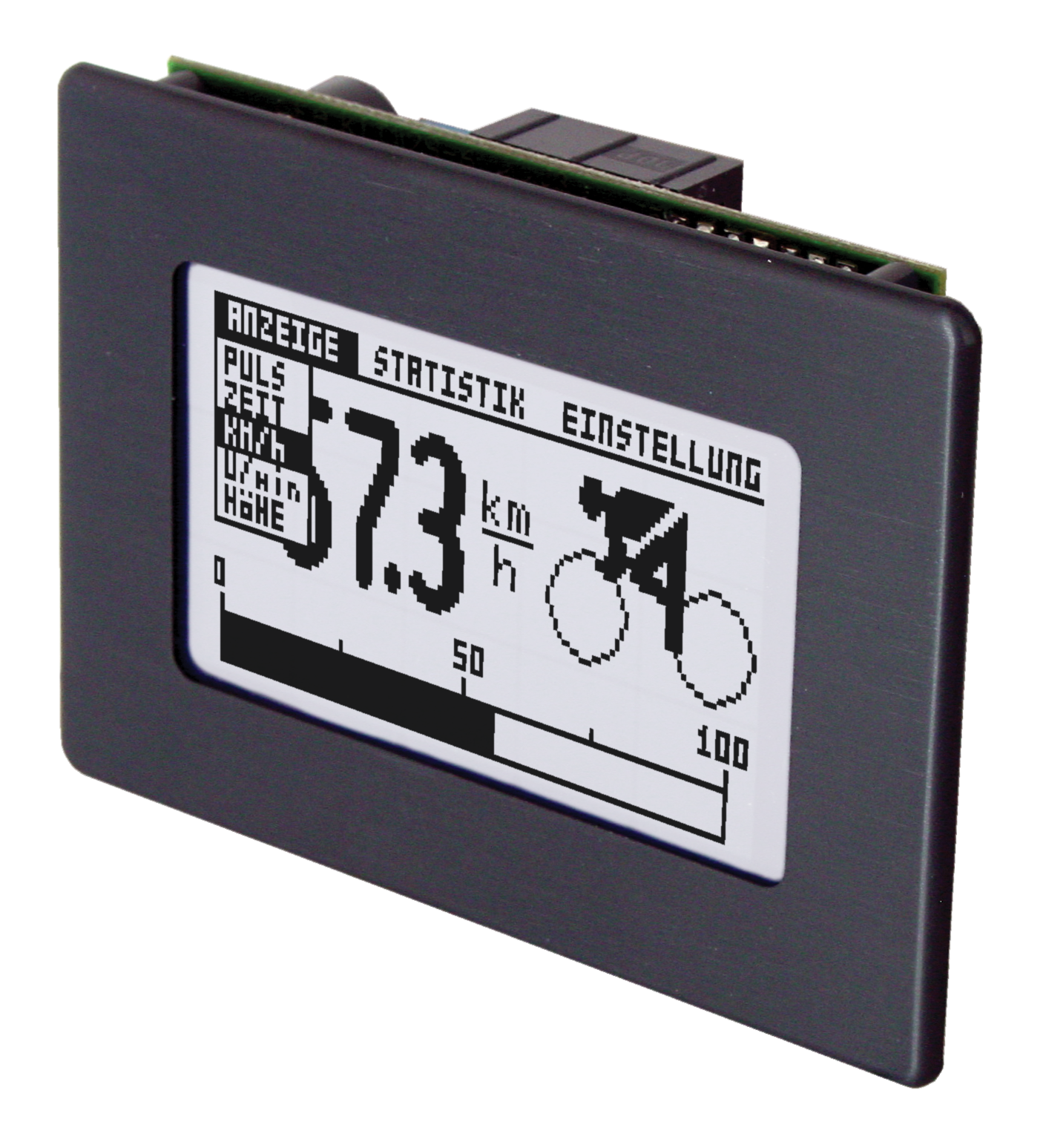

2.8" Serial HMI Graphic display with touch-screen
£165.58
SKU:
EA KIT129J-6LWTP
2 left in UK stock (more available from EU stock - delivery 1wk) Enquire or Buy now.
Graphic 2.8" HMI display White/Black 128x64 resolution with touch-screen. Interface serial RS-232. This graphic display is very easy to use with the built-in fonts and many graphic functions. Pictures, text and macro programs can be stored in the onboard memory. Supported with free to download LCD Tools software. As an accessory EA 0FP129-6SW a stylish black anodized aluminium panel mounting bezel is available. Supply voltage 5V or add EA OPT-9-36 for 9-35V supply option.
Click here to download the datasheet for this product.
| Total Width | 75 |
| Total Height | 60 |
| View area width | 61 |
| View area height | 38 |
| Backlight Colour | white |
| Background Colour | white |
| View Angle | 6:00 / bottom view |
| Display Technology | FSTN |
| Pixel Size Y | 128 |
| Pixel Size X | 64 |
| Operating Temperature | -20 ... +70 °C |
| Controller | EA |
| Active | 1 |
| Fonts | 8 |
| Diagonal Size | 2.8 |
| Touchscreen | Yes |
| Touch Type | matrix resistive |
| Inputs/Outputs | 8 |
