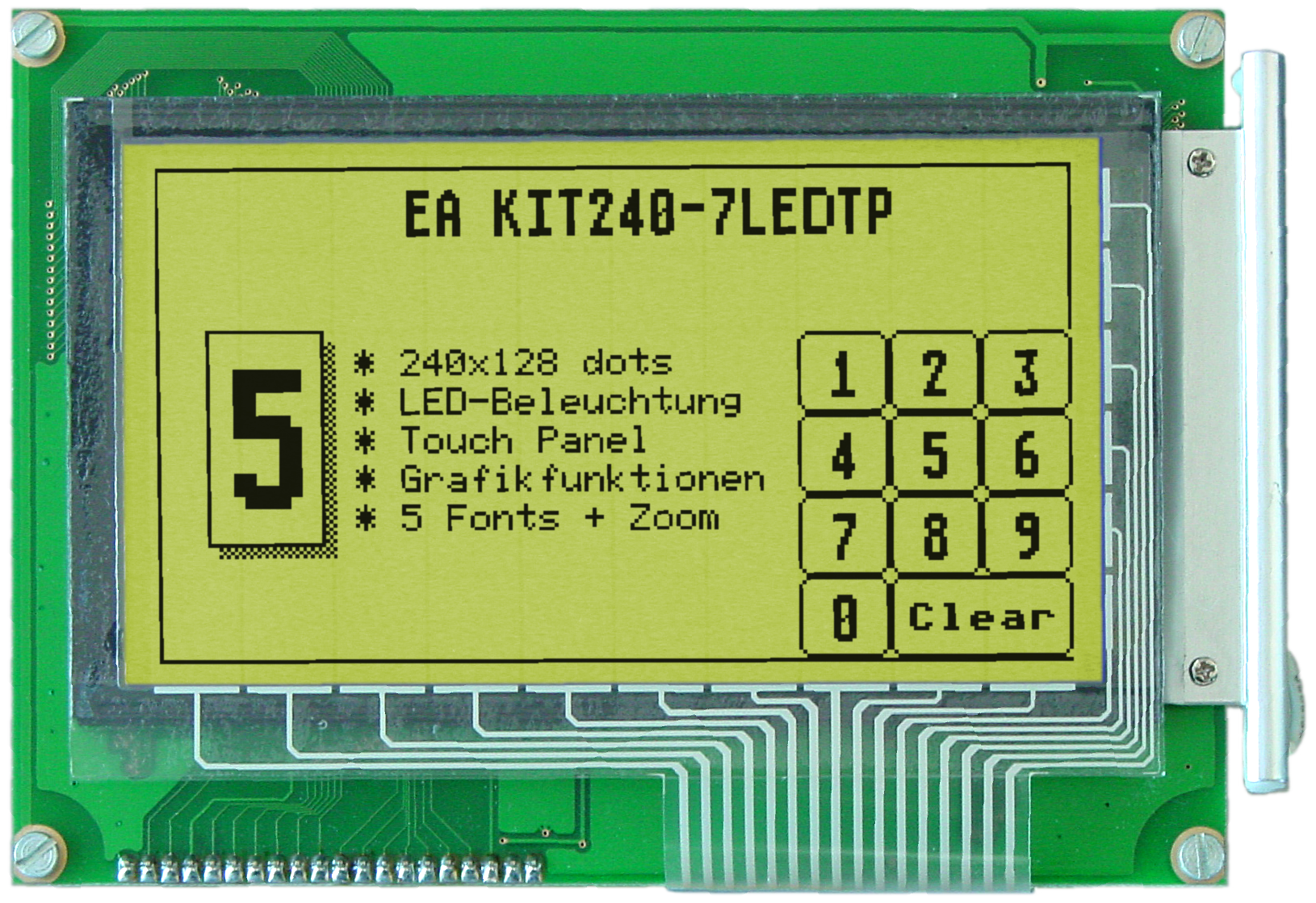

5.0" Serial HMI Graphic display with touch-screen
£406.77
SKU:
EA KIT240-7LEDTP
This item can be backordered, available from EU stock (delivery ~1wk) Enquire or Buy now.
Graphic 5.0" HMI display Yellow/Gren 240x128 resolution with touch-screen. Interface serial RS-232 or add EA OPT RS4224 for RS-422. This graphic display is very easy to use with the built-in fonts and many graphic functions. Pictures, text and macro programs can be stored in the onboard memory. Supported with free to download LCD Tools software. As an accessory EA 0FP240-7SW a stylish black anodized aluminium panel mounting bezel is available. Supply voltage 5V or add EA OPT-9-35 for 9-35V supply option.
Click here to download the datasheet for this product.
| Total Width | 144 |
| Total Height | 104 |
| View area width | 114 |
| View area height | 64 |
| Backlight Colour | yellow/green |
| Background Colour | grey |
| View Angle | 6:00 / bottom view |
| Display Technology | STN blue |
| Pixel Size Y | 240 |
| Pixel Size X | 128 |
| Operating Temperature | -20 ... +70 °C |
| Controller | EA |
| Active | 1 |
| Fonts | 8 |
| Diagonal Size | 5 |
| Touchscreen | Yes |
| Touch Type | matrix resistive |
| Inputs/Outputs | 16 |
