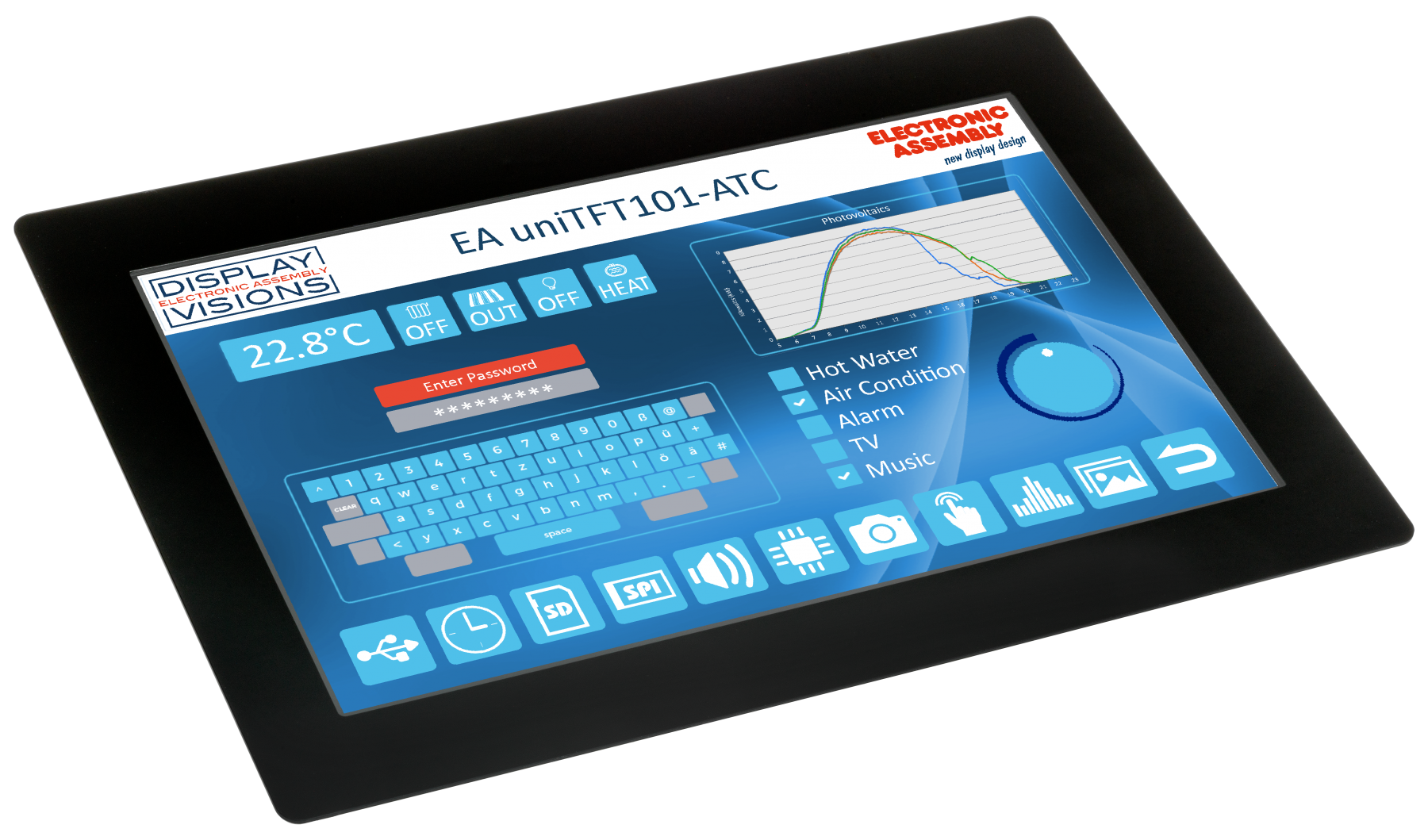

10.1" EA uniTFT101-ATC IPS multifunctional Graphic Display + PCAP touch
Smart 10.1" IPS TFT colour object programmable display with 1280x800 resolution, high brightness LED backlight and PCAP touch-screen. The uniTFT displays are easy programmable with the free uniTFTDesigner software. Simply connect the onboard USB port and download your project including pictures, fonts, I/O settings, calculations and script into the display. 7 serial Interfaces: USB, 2 x RS232, 2 x SPI, 2 x I²C.
• AACS (all angle color stability) and IPS-display for unlimited viewing angle
• High bright LED backlight 1000 cd/m²
• Object-oriented screen layout
• Alpha-blending
• ASCII and Unicode Fonts
• Serial interfaces: USB, RS232, SPI, I²C
• 16 digital I/Os for connection to sensors and actuators. (expandable to 125)
• 4 analog inputs with 12 bit resolution
• 1 analogue video input
• Time (RTC), battery-buffered
• Onboard Flash-memory for pictures, fonts, menus and log-files + SD card
Click | Total Width | 260 |
| View area width | 219.5 |
| View area height | 138 |
| Thickness | 20 |
| Status | In Production |
| Interface |
SPI I2C USB |
| Backlight Colour | white |
| Voltage Supply | 3.3V |
| Background Colour | RGB |
| Current Backlight Off (mA) | 450 |
| Current Backlight On (mA) | 1800 |
| View Angle | unlimited |
| Display Technology | TN-IPS |
| Pixel Size Y | 0.17 |
| Pixel Size X | 0.17 |
| Operating Temperature | -20 ... +70 °C |
| Controller | EA |
| Active | Y |
| Fonts | ASCII and Unicode |
| Diagonal Size | 10.1 |
| Touch Type | PCAP |
| Pixel X | 1280 |
| Pixel Y | 800 |
| Analogue Inputs | 4 |
| Inputs/Outputs | 16 |
| High Brightness | Y |
