2.0" EA uniTFTs020-ATC multifunctional IPS Graphic Display + PCAP touch

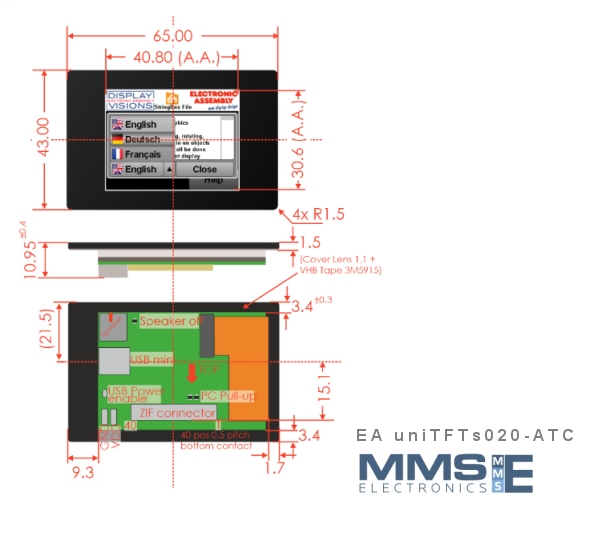

EA uniTFTs020-ATC Embedded Smart 2.0" IPS TFT colour object programmable display with 320x240 resolution, high brightness LED backlight and PCAP touch-screen. Manufactured by DISPLAY VISIONS. The uniTFTs displays are easy programmable with the free uniTFTDesigner software. Simply connect the onboard USB port and download your project including pictures, fonts, I/O settings, calculations and script into the display. In addition to the USB interface communication via RS-232 serial, I²C and SPI interface is possible. Fitted with 40 pin ZIF connector (bottom contact) for easy connection to the breakout boards. See EA DEMOPACK for demo applications or EA 94998-RGBANA, EA 94998-CONNI, EA 94998-RELAY, EA 94998-POWER for PCB only.

• AACS (all angle color stability) and IPS-display for unlimited viewing angle
• High bright LED backlight over 1000cd/m²
• Object-oriented screen layout
• Alpha-blending
• ASCII and Unicode Fonts
• Serial interfaces: USB, RS232, SPI, I²CAnimate and move objects
• 8 digital I/Os for connection to sensors and actuators. (expandable to 136)
• 4 analog inputs with 12 bit resolution
