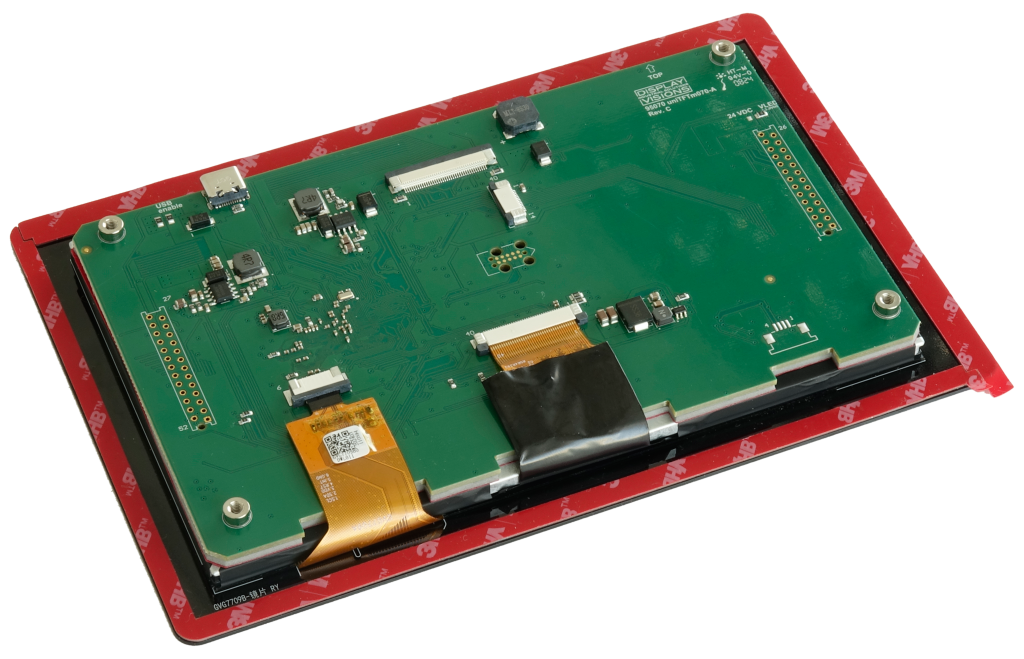

7.0" EA uniTFTm070-ATC IPS multifunctional Graphic Display + PCAP touch

EA uniTFTm070-ATC Embedded Smart 7.0" IPS TFT colour object programmable display. A 7.0" display with 1024x600 resolution, high brightness LED backlight and PCAP touch-screen.

The design of the EA uniTFTm070-ATC is based on the original EA uniTFT070-ATC and redesigned as an inexpensive version. We have two versions, the uniTFTm070-ATC does not have the red Micromatch connectors fitted and the EA uniTFTm070-BTC include the red micromatch connectors as found on the original EA uniTFT070-ATC display.

The displays are easy programmable with the free uniTFTDesigner software. Simply connect the onboard USB port and download your project including pictures, fonts, I/O settings, calculations and script into the display. 7 serial Interfaces: USB, 2 x RS232, 2 x SPI, 2 x I²C.

• AACS (all angle color stability) and IPS-display for unlimited viewing angle
• High bright LED backlight 1000 cd/m²
• No Linux or Android OS required, use the uniTFTDesigner software
• Object-oriented screen layout
• Alpha-blending
• ASCII and Unicode Fonts
• Serial interfaces: USB, RS232, SPI, I²C
• 16 digital I/Os for connection to sensors and actuators. (expandable to 125)
• 4 analog inputs with 12 bit resolution
• 1 analogue video input
• Time (RTC), battery-buffered
• Onboard Flash-memory for pictures, fonts, menus and log-files
