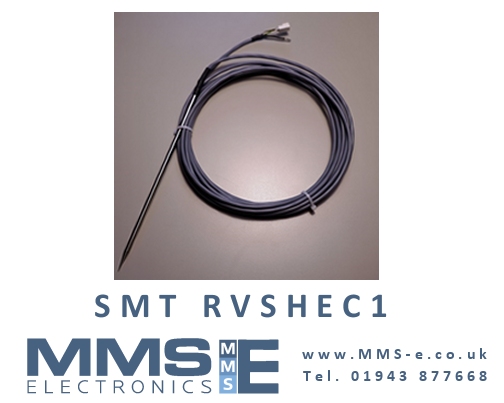

Digital Temperature probe, 0.25 °C accuracy, fine tip SMTRVSHEC1

A fine point stainless steel probe with the SMT172-HEC temperature sensor built-in. 5.0mm diameter x 150mm long stainless steel probe with a 5 mtr shielded cable. (Connection Brown = Vcc, Green = GND, White = PWM output).

Time constant in non stirred fluid is 5sec.

* Overall accuracy 0.25ºC in the temperature range of -20ºC to 80ºC. (SMT172-HEC Sensor)
* Accuracy of 0.8ºC from -45ºC to -20ºC and from 100ºC to 135ºC
* Noise less then 0.0001ºC
* Full temperature range from -45ºC to -135ºC (-49ºF to 275ºF)
* PWM output is easy to read by the a microprocessor.
* PWM signal is proportional to the temperature.
* Supply voltage 3V, 3.3V, 5V (Voltage range from +2.7V to +5.5V).
* 3 pin sensor, requires only one digital pin. ( Vcc, Gnd, PWM output ).

For quick evaluation of these sensors we have evaluation boards with USB interface. The SMTAS04USB can measure up to 4 x SMT172 temperature sensors and the SMTAS08USB can measures up to 8 sensors with an accuracy of 0.1ºC in the temperature range of -10ºC to 100ºC with a resolution of 0.0015 C. The board and sensors are powered from the USB port or an external DC power supply. The board uses an ARM Cortex-M3 STM32F103 to read the temperature sensors and output the measured temperature Celsius value and the PWM signal in HEX on the USB interface.
