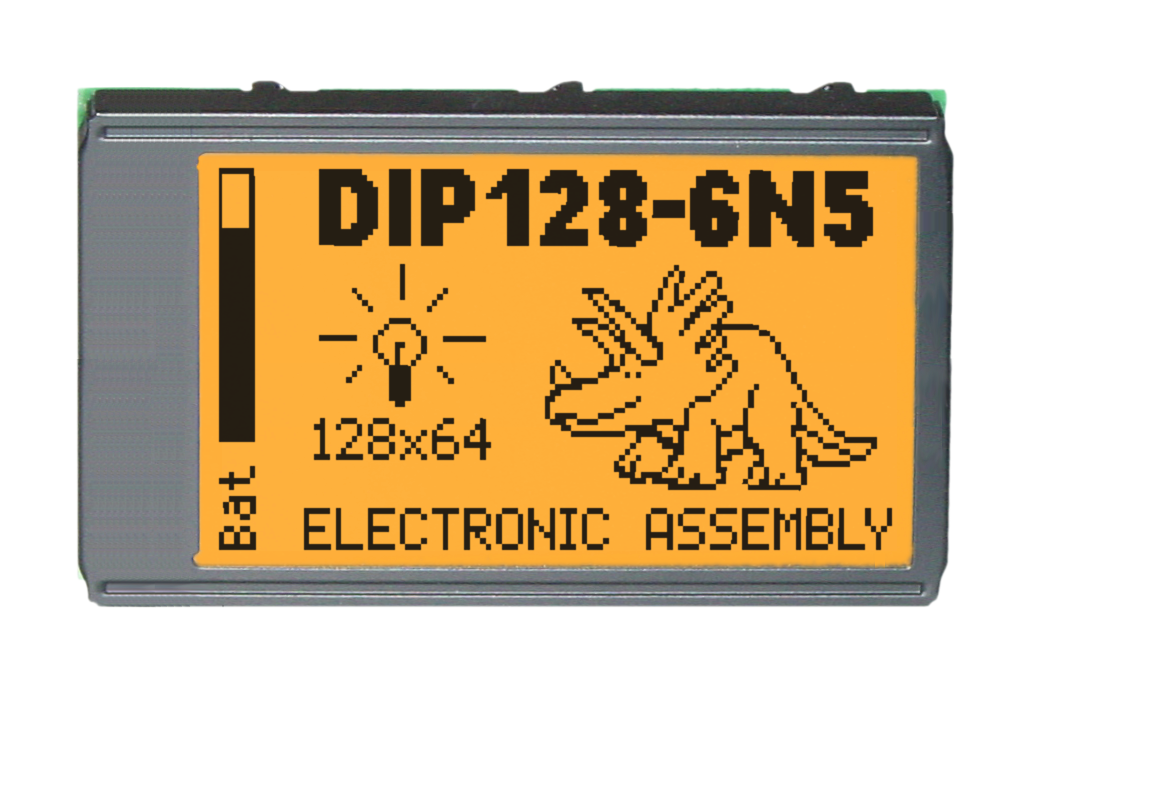

64x128 DIP Graphic Display EA DIP128J-6N5LA
£26.42
SKU:
EA DIP128J-6N5LA
2 left in UK stock (more available from EU stock - delivery 1wk) Enquire or Buy now.
EA DIP128J-6N5LA Graphic display with 128x64 dots, Amber backlight. Compact high-grade display with extended temperature range.
Display pins can be solder direct into the PCB or plug into a 2.54mm pitch socket.
FSTN transfelctive technology with Amber LED backlight. Including controller PT6608 compatible to HD61202. 8-bit interface
Also available in Blue with White characters EA DIP128-6N5LW, Amber with Black Characters EA DIP128J-6N5LA and White with Black Characters EA DIP128J-6N5LW
The displays are available with or without a 5x7 resistive touch-screen.
Click | Interface | 4/8 Bit |
| Backlight Colour | amber |
| Voltage Supply | 5.0V |
| Background Colour | white |
| Current Backlight Off (mA) | 5 |
| Current Backlight On (mA) | 45 |
| View Angle | 6:00 / bottom view |
| Display Technology | FSTN |
| Pixel Size Y | 0.5 |
| Pixel Size X | 0.42 |
| Operating Temperature | -20 ... +70 °C |
| Controller | PT6607/08 |
| Active | 1 |
| Fonts | 0 |
| Diagonal Size | 2.8 |
| Touchscreen | No |
| Analogue Outputs | 0 |
| Pixel X | 64 |
| Pixel Y | 128 |
