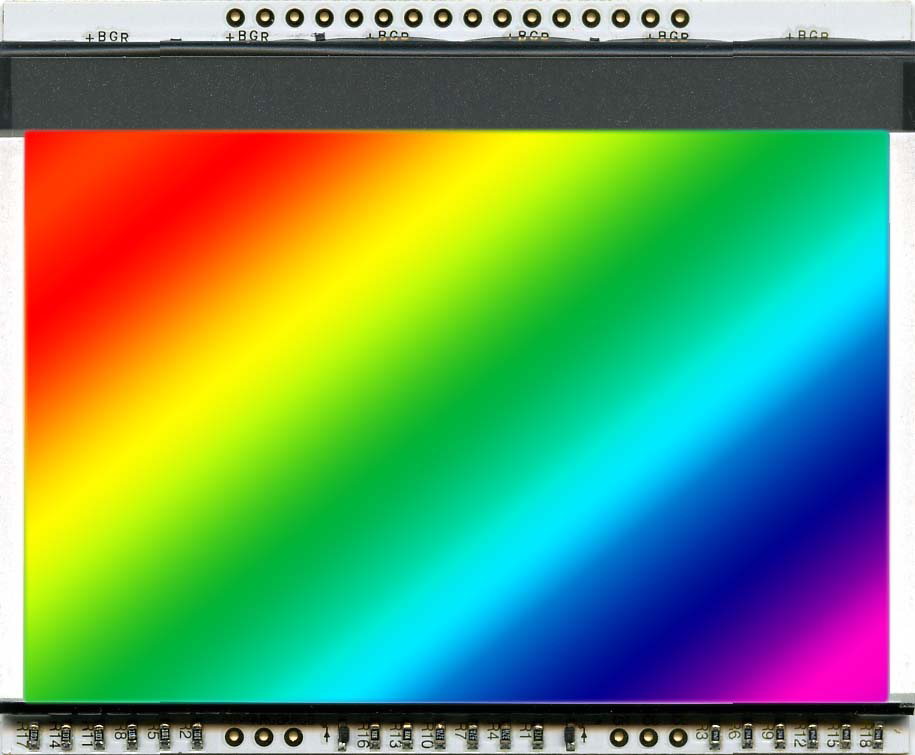

EA LED78X64-RGB LED backlight (RGB) for EA DOGXL160-7
£35.40
SKU:
EA LED78X64-RGB
18 left in UK stock (more available from EU stock - delivery 1wk) Enquire or Buy now.
EA LED78X64-RGB LED backlight (3 basic colours or mixed) for EA DOGXL160-7; colours: GREEN, RED and BLUE. Supply voltage 3.3V via an ext. current limit resistor. There is an input for each colour selection or by using an external PWM signal other colors can be generated.
| Total Width | 78 |
| Total Height | 45.6 |
| Thickness | 4.2 |
| Status | In Production |
| Current Backlight Off (mA) | 0 |
| Current Backlight On (mA) | 180 |
| Operating Temperature | -20 ... +70 °C |
| Diagonal Size | 3.3 |
| Colour | RGB |
